功能特点 YAG激光器是一种固体激光器，其产生激光的波长为1064nm,属于红外光频段，其特点是振荡效率高，输出功率大，而且非常稳定，是目前技术最成熟，应用范围最广的一种固体激光器。灯泵浦YAG激光器采用氪灯做为能量来源（激励源），ND：YAG作为能量的介质（工作物质），激励源发出的特定波长的光可以促使工作物质发生能量跃迁，从而释放出激光，将释放的激光能量放大后，就可以形成可对材料进行加工的激光束。 1、激光功率大，能量可由电流、软件控制、连续可调 2、可标记〈0.3mm任意深度的信息。 3、采用振镜扫描系统、速度快、精度高、性能稳定。 4、软件功能强大。 5、加工成本低廉，无需油墨等印刷耗材。 6、具备长时间连续工作能力。 技术参数 最大激光功率：50W 激光波长：1064nm 激光重复频率：30KHZ 打标范围：100＊100mm、200＊200mm、300＊300mm 打标深度：<0.3mm 打标线速：<7000mm/s 最小线宽：0.015mm/s 最小字符：0.3mm 重复精度：+0.03mm 整机耗电功率：5KW 电力需求：220V/50Hz/19A 外型尺寸：光路系统1700mm＊190mm＊260mm 　　　　　冷却系统650mm＊310mm＊665mm 　　　　　控制系统655mm＊555mm＊775mm

Feature YAG laser marker is a solid laser with wavelength 1064nm. It belongs to the infrared frequency band, its characteristic is vibrates the efficiency high, big output power, moreover extremely stable, it s technology is the most mature, the solid laser is one of the most laser be widely used .YAG laser marker uses the krypton lamp for the energy originates (drive source), ND: YAG took the energy the medium (work matter), drove the source sends out the specific wave length beam which can urge the work matter to have the energy jump, thus releases the laser, after will enlarge the laser energy, might form laser beam which may processing the material . 1.The laser power is big, the energy controlled by the electric current, software, continuously 2.Marking 〈0.3mm 3.Uses inspires the mirror scan system, high speed, highly precision, the performance is stable. 4.Software function is very strong. 5.The cost is very low, needn’t consumption such as printing ink. 6.The working time is very long and continuity. Parameter Max Laser-power: 50W Laser wave-length: 1064nm Laser repeat frequency: 30KHZ Marking scope: 70＊70mm、110＊110mm、200＊200mm Marking depth: <0.3mm Marking line speed: <7000mm/s Min line width: 0.018 Min character: 0.3mm Repeat precision: +0.01mm Whole consumption power: 5KW Electricity demand: 220V/50HZ/19A Machine dimension: opticssystem1700mm＊190mm＊260mm/ cooling system650mm＊310mm＊665mm/ controlling system655mm＊555mm＊775mm

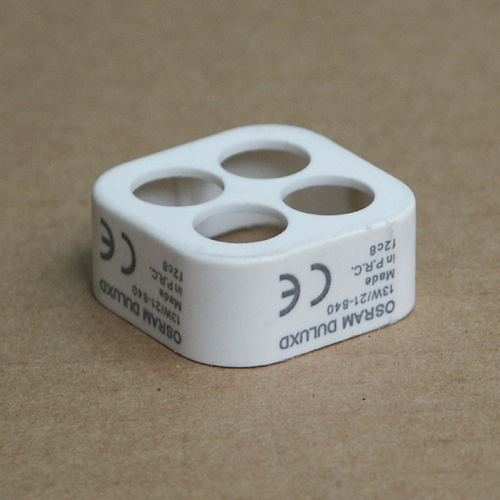

参考样品 Sample for reference
